Wei Chen (wc3@andrew.cmu.edu), Ran You (rany2@andrew.cmu.edu)

SUMMARY

We will implement a parallel solver of the Chess with the Multiverse Time Travel game using MPI, OpenMP, and Cilk on the GHC machines.

Contents

• Proposal

• Milestone

• Report

• Source code

Checklist

• Finish implementation of multiverse chess rules
• Test Cilk coding environment
• Finish implementation Minimax algorithm
• Define and implement utility function
• Parallelize the program in OpenMP
• Parallelize the program in MPI
• Parallelize the program in Cilk
• Optimize parallel programs
• Conduct experiments and analysis on the parallel program
• Write project report and prepare for project presentation

Game Rules

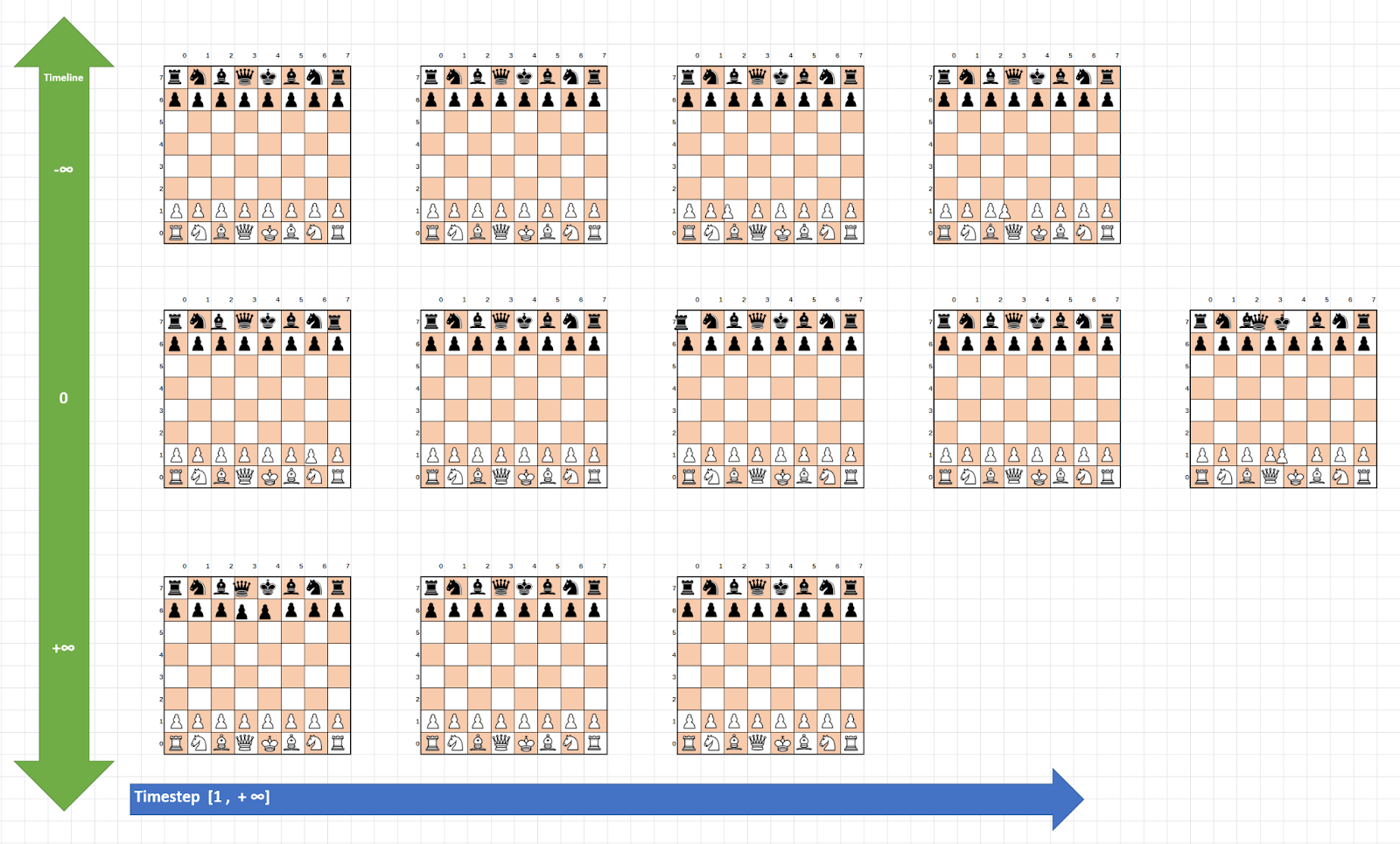

Extra dimensions of 4D Chess

The traditional chessboard coordinates are defined as row,col and row∈[0,7]，col∈[0,7]. 4D chess have two additional dimensions timestep and timeline and Timestep ∈ [1,+∞] Timeline ∈ [-∞,+∞]

• Timestep: Number of rounds. The coordinate range is from the first round to the infinite round.
• Timeline : Timeline coordinates. White piece is recorded as positive, black is recorded as negative, and the initial timeline is 0

Moves of chess pieces

The rules of chess moves are the same as original chess. However, when a chess moves across timelines or back in time, these count as extra dimensions. For example, a knight can move 1 block in one dimension and 2 blocks in a perpendicular dimension, and timelines or timesteps are dimensions perpendicular to the ranks/files on a chess board.

Algorithm

find_moves {

For all timelines			// parallelize over all timelines
		For all historical timesteps	// parallelize over all timesteps
			For all chess pieces	// parallelize over all pieces
				Generate possible moves on current board (2D)
				Add moves to a queue

}

main {
Initialize board
While (is not end) {
		White find best moves for all timelines	// parallelize over timelines
			Build monte carlo tree			// parallelize on subtrees (hard)
				Run find_moves and update moves recursively
			Evaluate utility function on all leaf nodes	// parallel on nodes
			Run minimax algo
		Update white moves

		Black find best moves
			… … (same as white)
		Update black moves
	}
}
